Stainless steel ferrule netting also named stainless steel ferrule mesh,stainless steel cable netting, zoo mesh,zoo netting,animal enclosure wire mesh,wire netting.
There are two parts of the stainless steel ferrule netting: stainless steel cable,ferrules.
The rough material of the stainless steel cable is stainless steel 304,316,316L，etc.
Galvanizing wire cable is also available.We can also offer other colors as well.
The material of the ferrule is stainless steel, aluminum,copper.
The cable structure is 7*7,7*19
The ferrule including open-end type and close-end type
The feature of open-end ferrule type rope mesh:
All the netting panel weave with one rope.And the overall appearance is pleasing as well as easy operation.
The feature of the close-end type
The mesh panel combined with many cables,the ferrules combines the cables very tight.there are many connector on the seal.

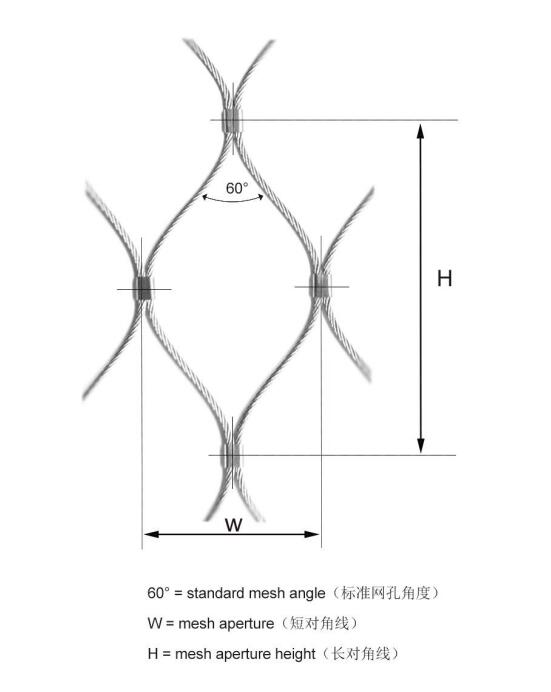

Here is the method to measure the hole aperture.
The advantage of the stainless steel wire rope mesh:
1.The netting is clipped to the cable.
2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested – especially suitable for facades.
4.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5.Anti-corrosive, resist the rust, can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material, safety, environmental protection.
Application
Balustrade infills
Fall protection
Helidek safety net
Security net
Separation mesh
Facade greenery
Parking garage facades
Decoration
Shopfitting
|
|
Flexible stainless steel rope mesh (Ferruled type) |
|
|||||
|
Model |
Rope structure |
Normal Break |
Wire Diameter |
Hole Size |
|||
|
data |
picture |
Ibs. |
mm |
inch |
mm |
inch |
|
|
BNF32120 |
7x19 |
|
1600 |
3.2 |
1/8 |
120x208 |
4.75x8.23 |
|
BNF32100 |
7x19 |
1600 |
3.2 |
1/8 |
100x173 |
3.94x6.81 |
|
|
BNF32090 |
7x19 |
1600 |
3.2 |
1/8 |
90x156 |
3.55x6.15 |
|
|
BNF24100 |
7x7 |
|
920 |
2.4 |
3/32 |
100x173 |
3.94x6.81 |
|
BNF24090 |
7x7 |
920 |
2.4 |
3/32 |
90x156 |
3.54x6.14 |
|
|
BNF24080 |
7x7 |
920 |
2.4 |
3/32 |
80x139 |
3.15x5.47 |
|
|
BNF24070 |
7x7 |
920 |
2.4 |
3/32 |
70x121 |
2.75x4.76 |
|
|
BNF20100 |
7x7 |
|
676 |
2.0 |
5/64 |
100x173 |
3.94x6.81 |
|
BNF20090 |
7x7 |
676 |
2.0 |
5/64 |
90x156 |
3.54x6.14 |
|
|
BNF20080 |
7x7 |
676 |
2.0 |
5/64 |
80x139 |
3.15x5.47 |
|
|
BNF20070 |
7x7 |
676 |
2.0 |
5/64 |
70x121 |
2.75x4.76 |
|
|
BNF16080 |
7x7 |
|
480 |
1.6 |
1/16 |
80x139 |
3.15x5.47 |
|
BNF16070 |
7x7 |
480 |
1.6 |
1/16 |
70x121 |
2.75x4.76 |
|
|
BNF16060 |
7x7 |
480 |
1.6 |
1/16 |
60x104 |
2.4x4.16 |
|
|
BNF16050 |
7x7 |
480 |
1.6 |
1/16 |
50x87 |
2x3.5 |
|
|
BNF12080 |
7x7 |
|
270 |
1.2 |
3/64 |
80x139 |
3.15x5.47 |
|
BNF12070 |
7x7 |
270 |
1.2 |
3/64 |
70x121 |
2.75x4.76 |
|
|
BNF12060 |
7x7 |
270 |
1.2 |
3/64 |
60x104 |
2.4x4.16 |
|
|
BNF12050 |
7x7 |
270 |
1.2 |
3/64 |
50x87 |
2x3.5 |
|
