Flexible stainless steel cable netting WOVEN TYPE

Stainless steel inter-woven netting also named stainless steel knotted mesh ,zoo mesh,zoo netting,animal enclosure wire netting,rope netting,bird protective netting.
The stainless steel inter-woven netting all made by stainless steel cable.
The rough material of the stainless steel cable is stainless steel304,316,316L,etc.
Galvanizing wire cable is also available.The cable can be do black or other color.

The cable structure is 7*7 or 7*19
Feature of inter-woven cable netting:
All the mesh panel is woven by hand.And the mesh is weave in a specifical way to make the cable go through another cable.So it is tight and strong.

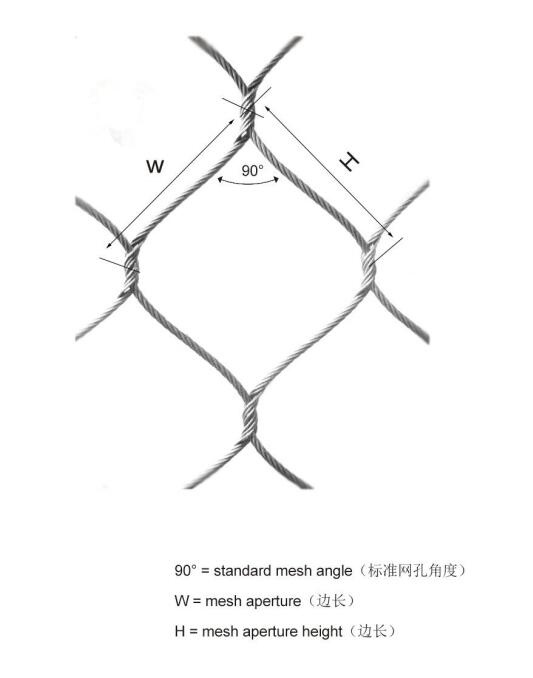

Here is the method to measure the hole aperture


The advantage of the stainless steel inter-woven netting:


1.The netting is clipped to the cable.
2.The mesh size and diameter can be modified.
3.It can be made to customer orders and statically tested – especially suitable for facades.
4.High strength, strong toughness, free-angles curving and fold, easy for transportation and

installment.
5.Anti-corrosive, resist the rust, can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material, safety, environmental protection.

Application

Balustrade infills
Fall protection
Helipad safety nets
Security mesh
Separation netting
Facade greenery
Parking garage facades
Decoration
Shopfitting



Flexible stainless steel rope mesh
(Woven type)

Model

Rope structure

Normal Break

Wire diameter

Hole size

data


Ibs.

mm

inch

mm

inch

BNW32120

7x19

1600

3.2

1/8

120x120

4.75x4.75

BNW32102

7x19

1600

3.2

1/8

102x102

4x4

BNW32090

7x19

1600

3.2

1/8

90x90

3.55x3.55

BNW32076

7x19

1600

3.2

1/8

76x76

3x3

BNW32051

7x19

1600

3.2

1/8

51x51

2x2

BNW24102

7x7

920

2.4

3/32

102x102

4x4

BNW24090

7x7

920

2.4

3/32

90x90

3.55x3.55

BNW24076

7x7

920

2.4

3/32

76x76

3x3

BNW24060

7x7

920

2.4

3/32

60x60

2.4x2.4

BNW24051

7x7

920

2.4

3/32

51x51

2x2

BNW20076

7x7

676

2.0

5/64

76x76

3x3

BNW20060

7x7

676

2.0

5/64

60x60

2.4x2.4

BNW20051

7x7

676

2.0

5/64

51x51

2x2

BNW20038

7x7

676

2.0

5/64

38x38

1.5x1.5

BNW16076

7x7

480

1.6

1/16

76x76

3x3

BNW16051

7x7

480

1.6

1/16

51x51

2x2

BNW16038

7x7

480

1.6

1/16

38x38

1.5x1.5

BNW16030

7x7

480

1.6

1/16

30x30

1.2x1.2

BNW16025

7x7

480

1.6

1/16

25.4x25.4

1x1

BNW12038

7x7

270

1.2

3/64

38x38

1.5x1.5

BNW12030

7x7

270

1.2

3/64

30x30

1.2x1.2

BNW12025

7x7

270

1.2

3/64

25.4x25.4

1x1

BNW12020

7x7

270

1.2

3/64

20x20

4/5x4/5
